Administration and Programming Guide for OS/400

Using Firewalls

Firewalls are collections of hardware, software, and policies that are designed to limit access to resources in a networked environment.

Firewalls:

• Protect the internal network from infiltration or intrusion
• Protect the internal network from data and programs that are brought in by internal users
• Limit internal user access to external data
• Limit the damage that can be done if the firewall is breached

Net.Data can be used with firewall products that execute in your environment.

The following possible configurations provide recommendations for managing the security of your Net.Data application. These configurations provide high-level information and assume that you have configured a firewall that isolates your secure intranet from the public Internet. Carefully consider these configurations with your organization's security policies:

• High security configuration

  This configuration creates a subnetwork that isolates Net.Data and the Web server from both the secure intranet and the public Internet. The firewall software is used to create a firewall between the Web server and the public Internet, and another firewall between the Web server and the secured intranet, which contains DB2 Server. This configuration is shown by Figure 3.

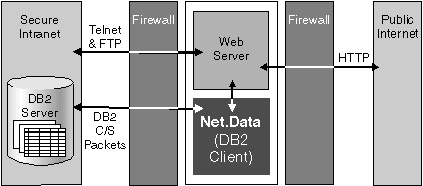

  Figure 3. High Security Configuration


  To set up this configuration:

  • Install Net.Data on the Web server machine and ensure that Net.Data can access DB2 Server inside the intranet by configuring the firewall to allow DB2 traffic through the firewall. One method is to add a packet filtering rule to allow DB2 client requests from Net.Data and acknowledge packets from DB2 Server to Net.Data.
  • Allow FTP and Telnet access between the Web server and the secure intranet. One method is to install a socks server on the Web server machine.
  • In the packet filtering configuration file of the firewall software, specify that incoming TCP packets from the standard HTTP port can access the Web server. Also, specify that outgoing TCP acknowledge packets can go to any hosts on the public Internet from the Web server.
• Intermediate security configuration

  In this configuration, firewall software isolates the secured intranet with DB2 server from the public Internet. Net.Data and the Web server are outside the firewall on a workstation platform. This configuration is simpler than the first, but still offers database protection. Figure 4 shows this configuration.

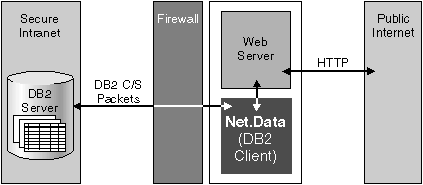

  Figure 4. Intermediate Security Configuration:


  The firewall must be configured to allow DB2 client requests to flow from Net.Data to DB2 and to allow acknowledge packets to flow from DB2 to Net.Data.

• Low security configuration

  In this configuration, DB2 server and Net.Data are installed outside of the firewall and the secured intranet. They are not protected from external attacks. The firewall needs no packet filtering rules for this configuration. Figure 5 shows this configuration.

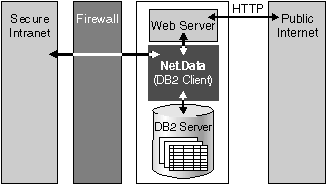

  Figure 5. Low Security Configuration:
